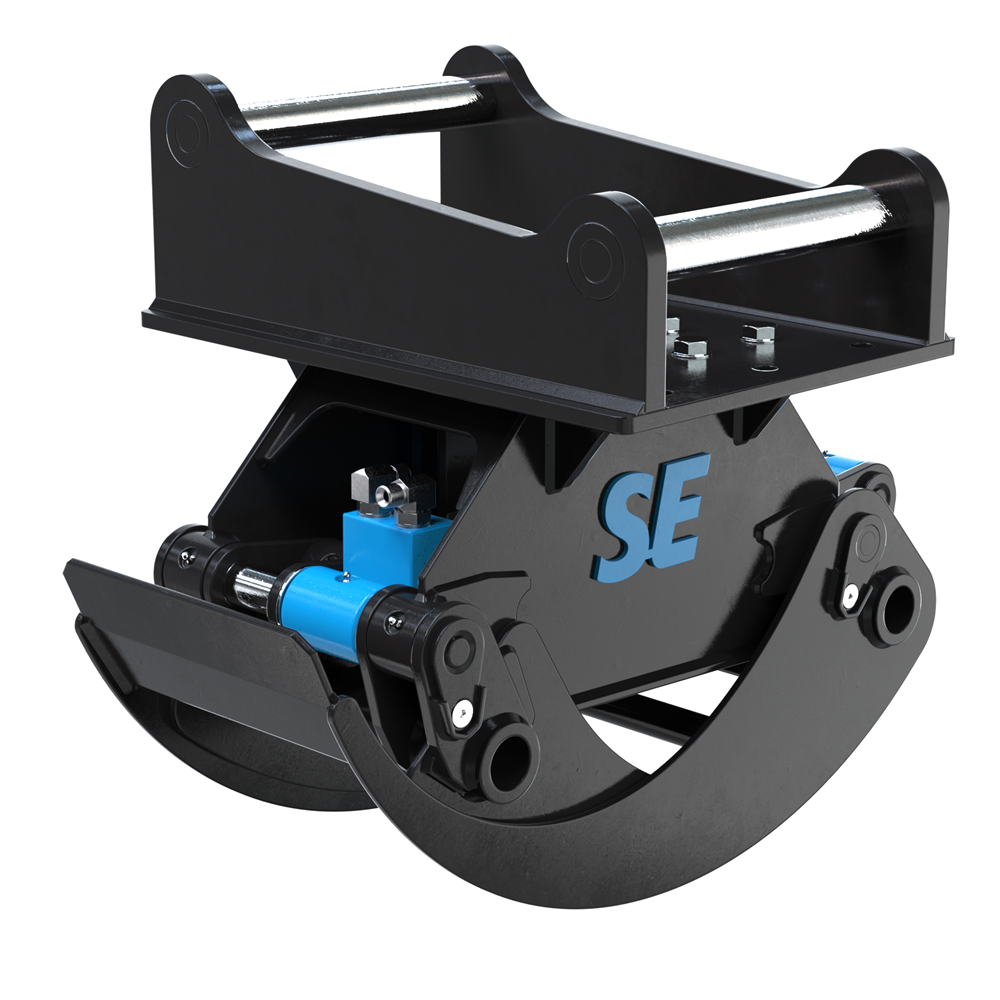

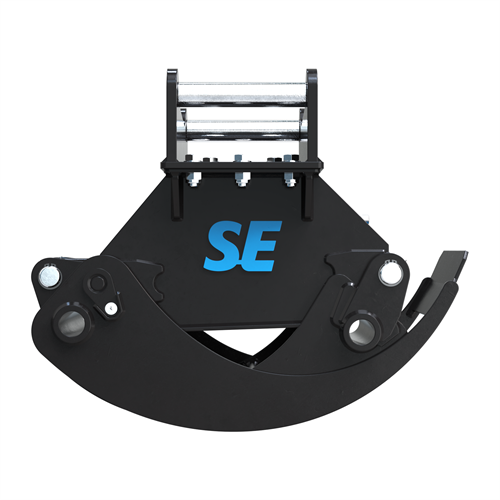

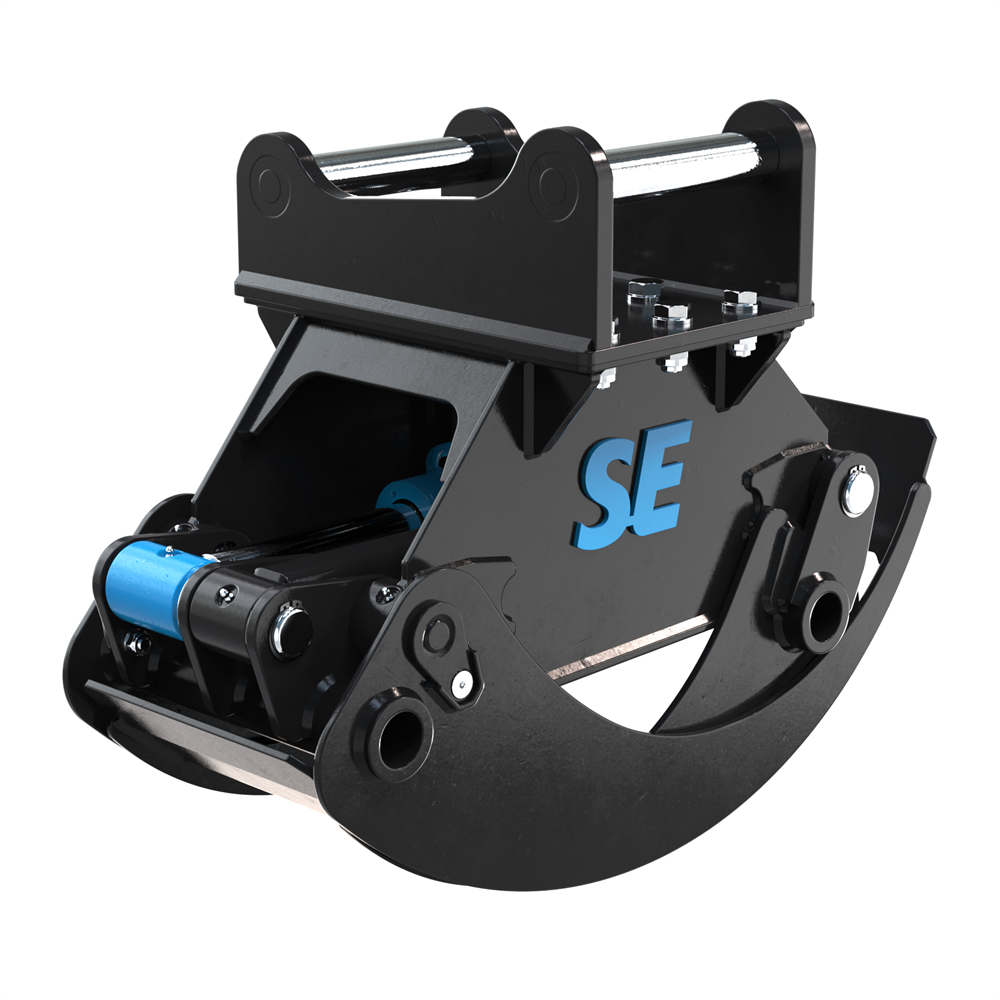

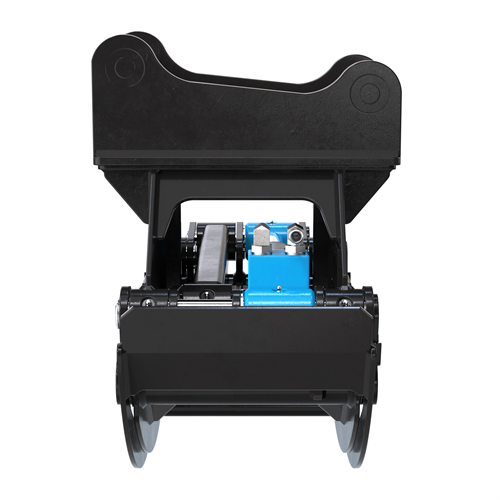

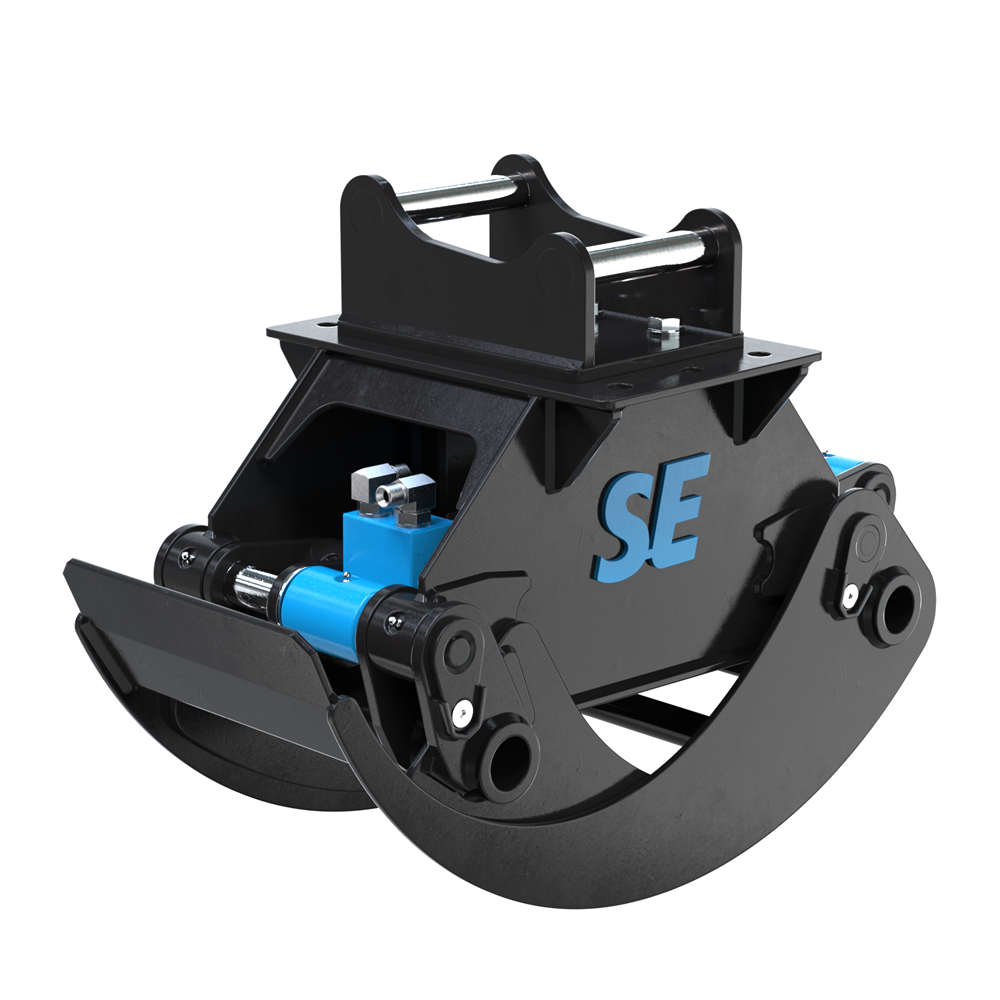

Fully equipped Timber Grapple for excavator – powerful and reliable
The timber grapple for excavator is a robust and efficient equipment developed for safe handling of timber, logs, and large wood. With bolted couplings, high gripping force, and a generous opening width, it is designed for professional use in forestry work, contracting, and material handling.
Function
The timber grapple is hydraulically operated and designed to provide a stable and secure grip even during heavy lifting. It handles a capacity of up to 1500 kg and operates at a maximum working pressure of 250 bar. The large opening width of 920 mm combined with a minimum gripping diameter of 50 mm makes the grapple flexible for both large and smaller materials. The bolted couplings contribute to high durability and easy servicing.
Advantages
- Delivered equipped with load-holding valve
- High lifting capacity
- Large maximum opening for efficient timber handling
- Bolted couplings for extended service life and easy maintenance
- Compatible with several common quick couplings: S30/150, S30/180 and S40
- Stable construction for demanding working environments
Applications
- Loading and unloading timber and logs
- Forestry work and logging
- Sorting and stacking timber
Important not to exceed the max. recommended machine weight for the grapple which is: 4 Ton
Summary
This timber grapple for excavator is a versatile and durable equipment for professional timber handling. With high capacity,
a large gripping area of 0.14 m² and the option to choose between several couplings, it is a reliable choice for those who require efficiency,
safety, and long service life in their work.
